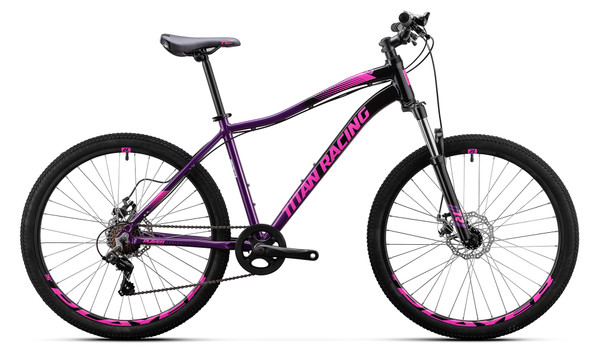

Product Overview
KEY FEATURES
- Lightweight Hydroformed Player Aluminium Frame.
- 100mm Alloy Suspension Fork soaks up the bumps.
- 26″ Wheels have a larger diameter which enables the rider to navigate the trail and obstacles with ease.
- Shimano 1×7 drivetrain is simple and hassle-free.
- Disc brakes work well in all weather conditions and are trusted for their reliability.
- TR Juinor grips are designed to be comfortable and offer ample grip when riding.
- Multi-user 5 Year Warranty ensures that you are buying quality.
| FRAME | TR YOUTH GIRLS 26" 6061 HYDROFORMED ALLOY V-BRAKE FRAME |
| SPEED | 1 X 7 SPEED |
| SIZE | S/M/L |
| FORK | ALLOY FORK 100M 27.5 WITH MLO |
| BB SET | FP-B602 |
| B-LEVER | CS-467D(3F) |
| BRAKE-F | WINZIP 160 - COLOUR SPIDER |
| BRAKE-R | WINZIP 160 - COLOUR SPIDER |
| B-CABLE | BLACK |
| CHAIN | KMC Z51 |
| CHAINWHEEL | PROWHEEL 36T 152MM ALLOY |
| DERA-F | NIL |
| DERA-R | SHIMANO RD-TY200 GS |
| FREEWHEEL | SHIMANO TZ21 14-28T |
| GRIP | TR JUNIOR GRIP |
| H-BAR | TR AL-153 RISER 620M |
| STEM | TR-SM-003 45MM |
| HEAD SET | FP H807 |
| SPACER | 10mm |
| HUB-F | STEEL BLACK Q/R |
| HUB-R | STEEL BLACK Q/R |
| PEDAL | KIDS |
| RIM | TR MD16 32H 27.5" MATT BLACK |
| SADDLE | CL-6402 |
| SEAT CLAMP | TR AR-101 SQR115> |
| SEAT POST | TR SP-102 27.2MM 250MM |
| SHIFTER-R | NIL |
| SHIFTER-L | SHIMANO SL-TZ500-7R SPEED |
| SPOKE | STEEL |
| TUBE | A/V |
| TIRE-F/R | CY VICTORY H-5129 27.5"X1.95 TYRES - BLACK WALL |
GEOMETRY
| 24“ | |
| HTA | 70 |
| HTL | 95 |
| TTL | 509 |
| STA (v) | 72 |
| STA (a) | 72 |
| STL | 285 |
| BBD | -25 |
| BBH | 290,5 |
| WB | 969 |
| CSL | 405 |
| ATC | 417 |
| FO | 42 |
| Reach | 349 |
| Stack | 495 |
| Trail | |
| Measurements in Millimeters (mm) and degrees. Inch measurement of ST length used for alternative size reference. | |
| Wheel diameter with 24″ tire | |
| 631 | |
